A wide driveway is a luxury, but securing it with double iron security doors is a complex engineering challenge. This guide narrows the process down to 12 critical factors to ensure your installation remains square and secure for decades. Let’s start by calculating your exact structural requirements.

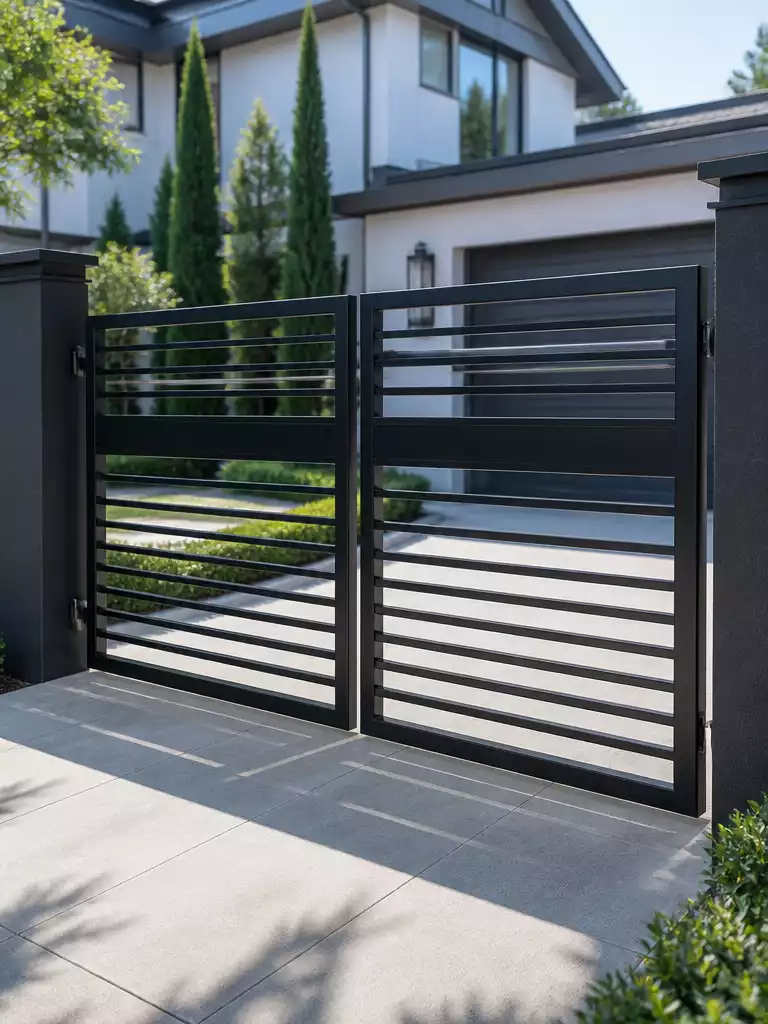

Total Opening Width
Calculating your exact span is the first step toward a gate that never binds.
As an Amazon Associate I earn from qualifying purchases. Affiliate links may earn me a commission at no extra cost to you.
When you are planning a double iron gate, your total opening width serves as the primary driver of structural leverage. It is not simply a measurement of distance; it dictates the forces that will act on your posts, hinges, and operating mechanisms every single day.
You must understand the physical thresholds for different gate types to ensure your system remains stable over time. If your driveway opening exceeds these limits, you risk significant mechanical failure:
- Swing Gates: The recommended limit is 28 feet (8.5 meters) for a dual-leaf system.
- Cantilever Gates: These are engineered for much larger spans, with a recommended limit of 48 feet (14.6 meters).
The 2-Inch Rule
To maintain security while preventing the leaves from binding, you should aim for a maximum clear opening tolerance of 2 inches (51 mm). This gap provides enough space for natural material expansion and slight post movement without creating a security vulnerability.
Rigidity is non-negotiable for wide openings, so your width choice directly dictates the thickness of the frame tubing required to prevent sagging. A wider span acts as a longer lever, meaning any weakness in the frame will be amplified, leading to dragging or structural bowing.
To get an accurate measurement that prevents future binding, you must measure your opening at three specific heights: the top, the middle, and the bottom. Always design your gate to fit the smallest dimension among those three readings.
Warning: The Foundation Trap
Standard fence footings are insufficient for wide-span iron gates because they cannot resist the significant overturning moments generated by heavy leaves. Ensure your installation plan includes a minimum foundation depth of 3 feet (1 meter) using 3000 PSI concrete to keep your posts perfectly plumb.
⭐ Top Products for Total Opening Width
Solar Powered LED House Address Sign
Large Floating Modern Black House Numbers
Modern Floating Shadow Style House Numbers
🔢 The Right Sequence
Establishing your precise width early prevents the costly mistake of ordering custom steel that doesn’t fit your actual site conditions.
- Clear debris and obstructions from the entire driveway entrance span.
- Measure opening width at top, middle, and bottom using a laser level.
- Finalize your gate order based strictly on the smallest recorded dimension.

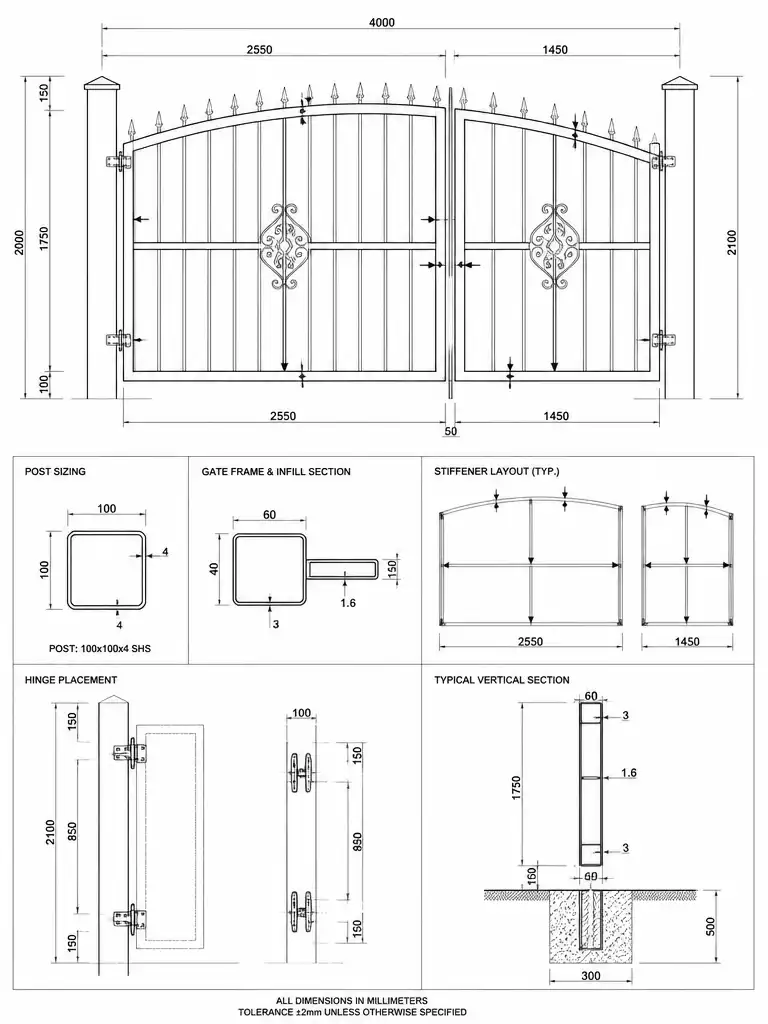

Leaf Size And Balance
Achieving perfect structural balance starts with choosing the right leaf dimensions for your span.
Do not make the mistake of assuming two equal-width leaves are always the right choice for your entrance. While symmetry is visually pleasing, functional requirements often dictate a split-leaf design, such as using a narrower leaf for daily pedestrian access and a wider one for vehicle entry.
The 8-foot breakpoint is the most critical threshold in gate design. Any leaf exceeding 8 feet (2.4m) requires an integrated 1.5-inch square stiffener to prevent structural bowing.
Your leaf size directly influences the necessary post diameter to prevent sagging and binding over time. Use this guide to ensure your gate remains square throughout its lifespan:
When finalizing your measurements, always calculate for a clearance reduction of 30–40mm across the total opening to account for hinges and latch gaps. Measure your opening width at the top, middle, and bottom, and always design your gate leaves based on the smallest dimension to avoid binding.
Avoid the binding trap.
Never design to the maximum possible width, as even minor post deflection will cause your gate to drag on the concrete or strike the opposing leaf.
⭐ Best Leaf Size and Balance Picks
Farmhouse Highland Cow Entrance Door Mat
Heavy Duty Matte Black Door Hinges
Natural Handwoven Jute Area Accent Rug
⚖️ Quick Decision Guide: Leaf Configuration
- Choose equal leaves if: Your driveway is perfectly flat and you want a balanced, classic aesthetic for your main entrance.
- Skip equal leaves if: You need frequent pedestrian access; a smaller leaf is far easier to operate by hand daily.
- Pair it with: A heavy-duty drop bolt on the smaller leaf to ensure the larger, main gate stays securely locked.

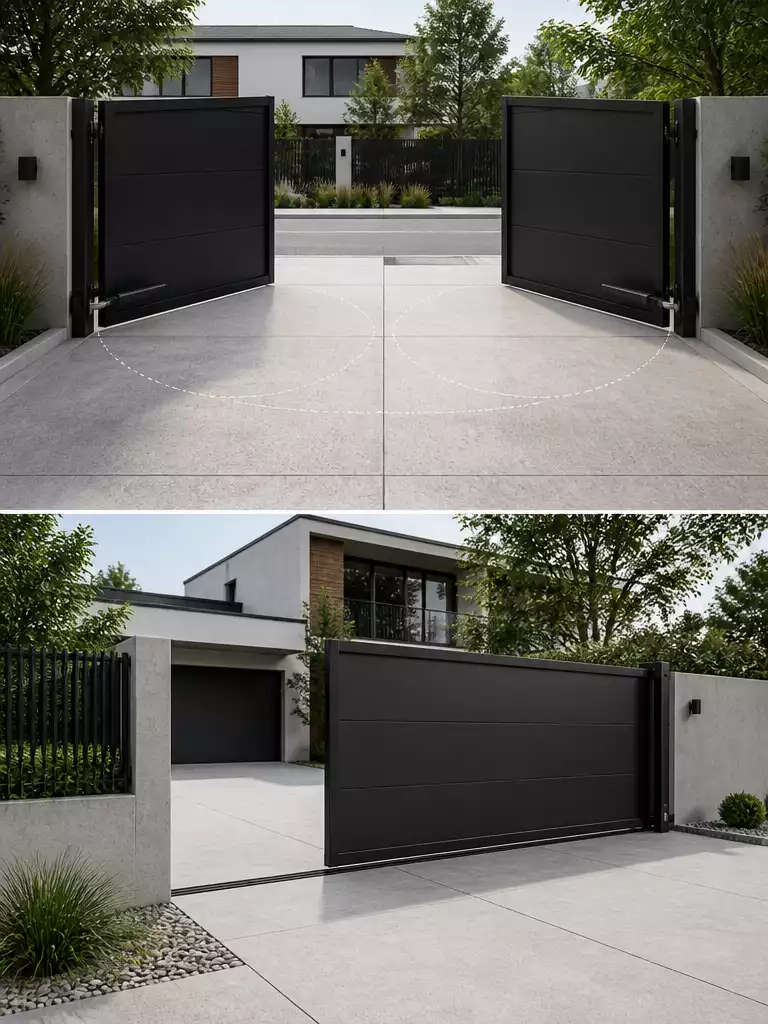

Swing versus Sliding Operation
Choosing the right movement mechanism dictates your gate’s long-term mechanical health and daily convenience.
The choice between swing and sliding operation is typically decided by your driveway’s physical grade and the available space, rather than your aesthetic preference. For wide frontages, the structural burden shifts significantly depending on which system you choose.
Warning: The Slope Trap
Never install a swing gate on a sloped driveway without professional site leveling. The incline will cause the leaves to bind at the high point of their arc, leading to motor burnout and severe frame stress.
Swing gates are often the preferred choice for wide openings because they divide the weight across two posts, splitting the load. However, they demand a clear, deep swing path that is entirely free of obstructions like landscaping or parked vehicles.
If your property lacks the depth for a swing arc, a sliding gate is a more practical solution. These systems utilize a track or cantilever design to move the gate laterally, keeping the entire mechanism tucked against your fence line.
For wide-span sliding gates, ensure your site has enough lateral run-back space to accommodate the gate leaves when fully retracted. Without this clear side space, you will be forced to compromise on the width of your opening, effectively shrinking your driveway access.
⭐ Swing versus Sliding Operation Essentials
Heavy Duty Dirt Trapping Coir Mats
Adhesive Cork Cat Scratch Furniture Protector
Seasonal Non Slip Layered Welcome Mats
🧰 Questions for Your Installer:
- Terrain Assessment: How will you specifically handle the driveway slope to ensure the gate leaves don’t bind during the swing?
- Leaf Balance: Will the chosen hinge system support the weight of my specific leaf size without long-term post deflection?
- Safety Logic: Does your proposed automation system include synchronized control and loop detectors to prevent the gates from hitting vehicles?

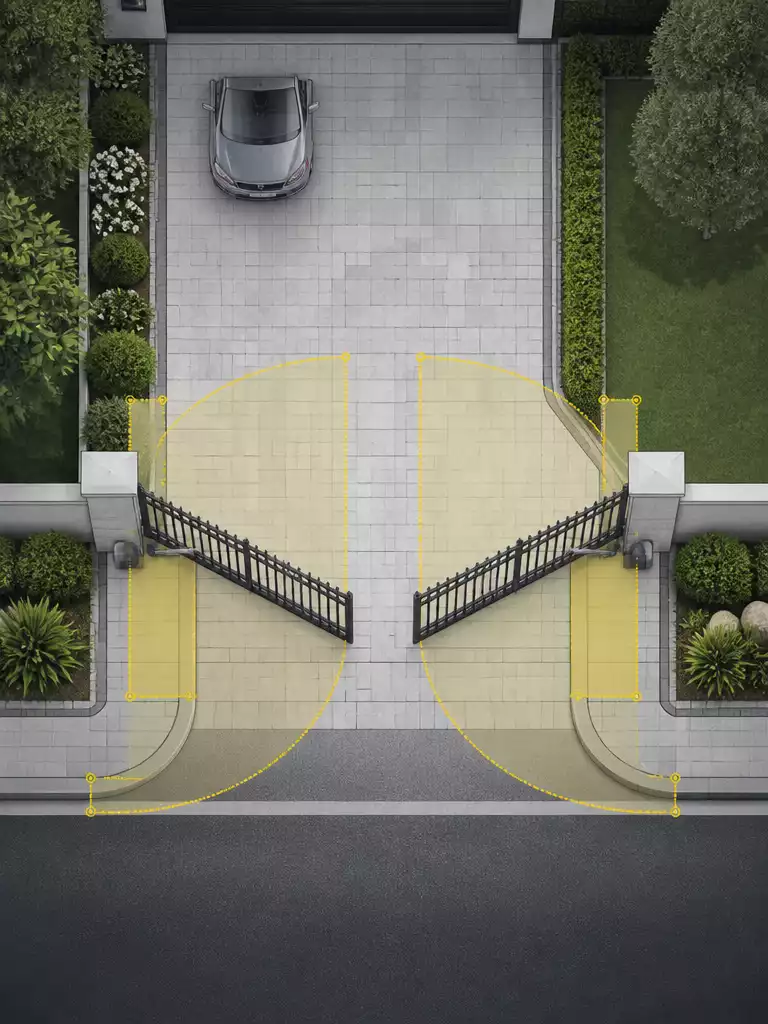

Swing Direction And Clearance
Mapping your swing path prevents mechanical binding and protects your vehicles from gate damage.
A gate that hits your parked car or a curb is a design failure, not a mechanical one. Before you commit to a swing system, you must map the entire arc to ensure it remains clear of any physical obstacles.
The Safety Margin Rule: Always calculate your required clear swing area by taking your total leaf width and adding a minimum of 1 to 2 feet of buffer space. This extra room accounts for minor post movement and ensures your vehicle isn’t trapped if the gate operates while you are pulling in.
You should physically mark the swing path on your driveway with chalk or spray paint before finalizing the post locations. Look specifically for hidden hazards like landscape lighting, raised garden beds, or concrete curbs that might interfere with the leaf’s travel.
If you have tight space constraints, consider the 8-inch offset rule. This allows you to position the pivot point up to 8 inches away from the gate face, which can provide the necessary clearance to swing around small obstructions without needing to relocate them.
Site Clearance Checklist
- ☐ Verify slope: Ensure the ground rises or falls no more than a few inches across the entire swing arc.
- ☐ Check parking spots: Confirm that a parked vehicle remains at least 2 feet outside the maximum swing radius.
- ☐ Identify fixed objects: Note any bollards, trees, or irrigation heads that fall within the path.
- ☐ Test the arc: Manually pivot a string or template to simulate the full travel of the gate leaf.
Remember that series-style gated entries—where you might have an outer and inner gate—require a minimum of 48 inches of separation between the two systems. This ensures there is sufficient space for a vehicle to clear the first set of gates before the second begins its cycle.
⭐ Swing Direction and Clearance Solutions
Western Style Layered Farmhouse Door Mats
Seasonal Ghost Flower Layered Welcome Mats
The Right Sequence
Establishing your gate swing path before pouring concrete prevents costly demolition and ensures hardware alignment remains precise.
- Map the full swing arc on the ground using high-visibility marking paint.
- Dry-fit the gate leaves or use a template to verify clearance against existing curbs.
- Set your permanent gate post footings only after confirming the arc is obstruction-free.
Managing the structural impact of your site constraints is a heavy task, but you do not need to solve for every variable at once. Focusing on a handful of critical mechanical points brings more clarity than trying to perfect every aesthetic detail.
🎯 The Calls Worth Getting Right:
- Prioritize post-foundation integrity before evaluating your custom gate design.
- Ensure automation torque is calculated to handle real-world wind resistance.
- Aligning your strike hardware correctly is more vital for longevity than decorative flair.

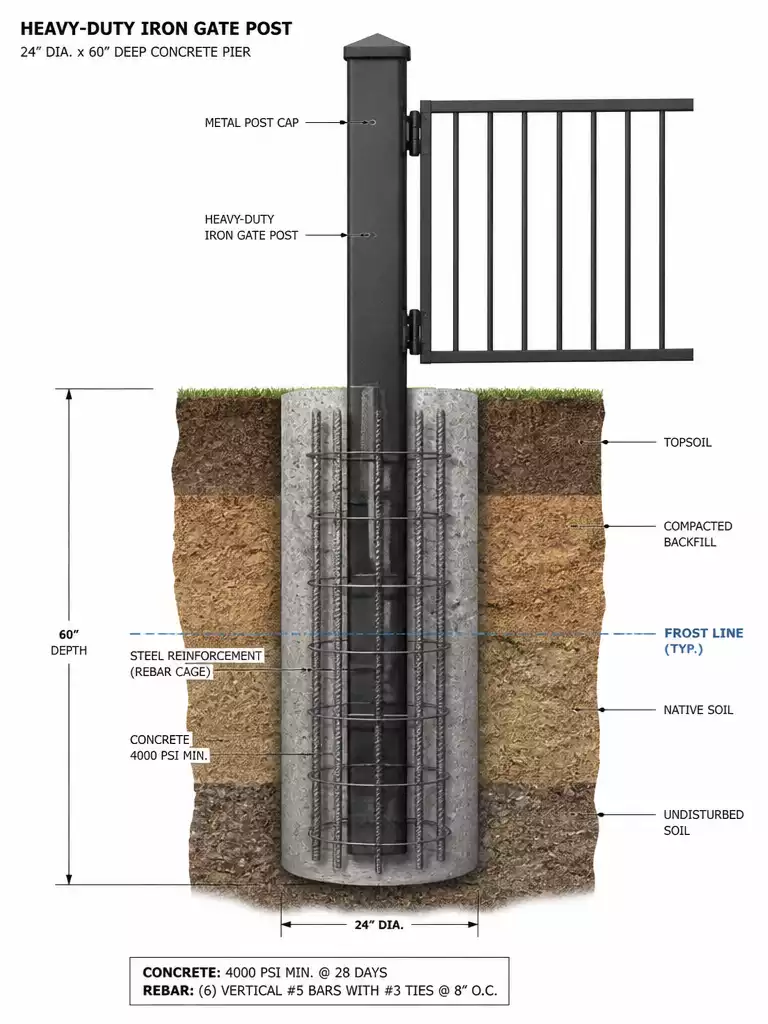

Post And Footing Requirements
A rock-solid foundation ensures your gate remains perfectly aligned for years of daily use.
The most common gate failure isn’t the metalwork—it’s the foundation. If your posts aren’t anchored against the massive leverage of a wide gate, they will eventually tilt, causing your leaves to bind, scrape, or fail to latch entirely.
The Foundation Trap
Standard fence footings are meant for wind resistance, not the heavy, repeated torque of a moving gate. You need massive, isolated concrete piers that reach below the frost line to prevent the post from shifting due to seasonal soil movement.
For heavy-duty iron gates, you must use 3000 PSI concrete to ensure the structural integrity of the pier. The depth of your hole is not a suggestion; plan for a minimum of 3 feet (1 meter) to properly manage the overturning moment caused by the weight of the leaves.
The total volume of concrete required depends on the size of your gate, with footing dimensions scaling significantly as the span increases:
Always verify your local frost line depth before digging, as this is the absolute floor for your footing depth. Investing in deep, reinforced piers now is the only way to avoid the headache of re-setting posts once the gate starts to sag.
⭐ Post and Footing Requirements
Heavy Duty Peel and Stick Scratcher
Trimmable Self Adhesive Cat Scratch Mat
Corner Wall Mounted Cat Scratch Mat
🔢 The Right Sequence
Getting the sequence right prevents irreversible mistakes, ensuring your gate foundation supports the weight without shifting over time.
- Define exact post locations based on the smallest opening measurement to prevent future binding.
- Excavate and pour footings at least 3 feet deep before any gate hardware is installed.
- Cure concrete fully before mounting heavy leaves to ensure maximum structural load-bearing capacity.

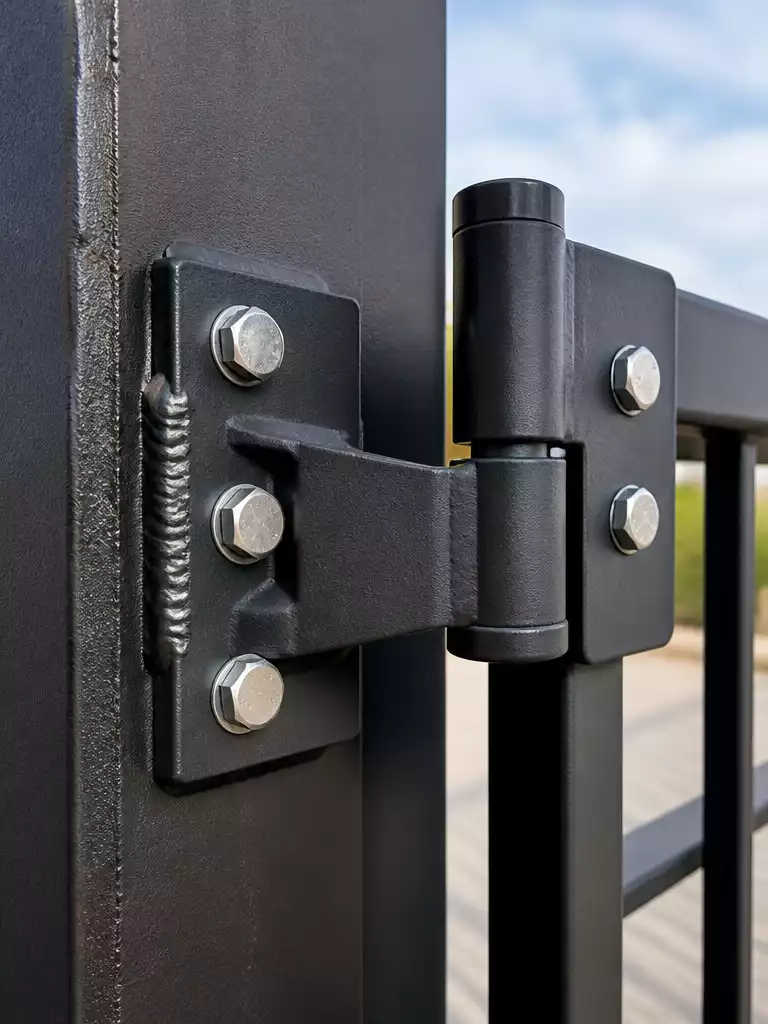

Gate Weight And Hinge Load
Precision-engineered hardware ensures your wide-span gate operates smoothly without sagging or mechanical binding.
Hinge failure is the silent killer of wide-span gates. When you have a massive iron frame, the leverage exerted on the pivot point is immense, and standard residential hardware simply cannot handle the load.
You must select hinge capacity based on the weight of the individual leaf, rather than the total weight of the entire gate system. Using a 3,000lb-rated hinge ensures that even under the stress of gravity and wind, the connection remains rigid and secure.
The Deflection Danger
Even a few millimeters of deflection in your hinge-side post will ruin the strike alignment at the latch. If your post isn’t rock-solid, your gate will eventually drag or fail to lock perfectly, regardless of how strong the hinges are.
For wider spans, your choice of post diameter is equally critical to supporting those high-load hinges. Use the following guide to ensure your infrastructure matches your gate size.
Always verify that your installation team is accounting for the maximum initial pull force, which should be around 40 lbs for a properly balanced gate. If the resistance feels higher than this during manual testing, you have a structural alignment problem that will shred your automation motor over time.
⭐ Gate Weight and Hinge Load
Natural Cork Cat Scratch Furniture Protector
Natural Cork Cat Scratching Pad Rug
Black Engineered Wood Wide Picture Frame
⚠️ Watch Out for These Hinge-Loading Pitfalls:
- Ignoring leaf weight: Calculating load based on the total gate mass instead of the individual leaf weight leads to premature hinge fatigue.
- Underestimating force: Failing to test for the required 40lb initial pull force means your automation motor will struggle, overheat, and fail.
- Weak post foundations: Even the strongest 3,000lb-rated hinges cannot compensate for a hinge-side post that shifts or deflects under heavy leaf loads.

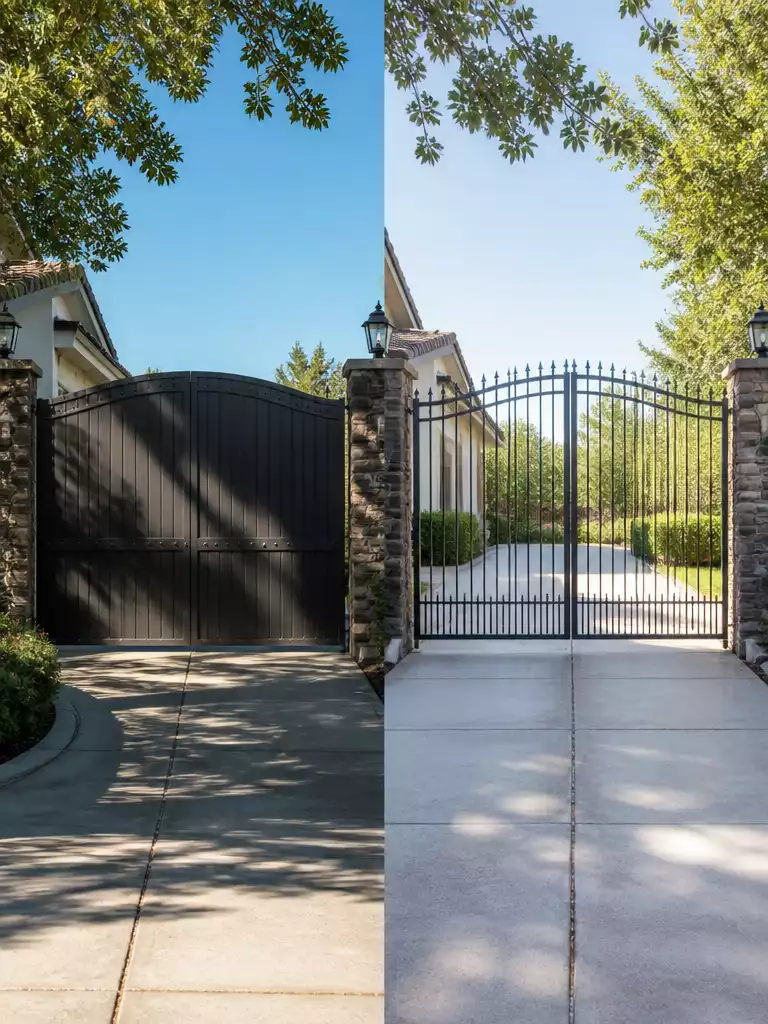

Infill Density Across A Wide Span
Balancing your privacy needs with the structural physics of wind resistance for long-term gate stability.
Treat your gate like a sail, not a wall. Every square inch of material you add to the gate face increases its resistance to wind, which puts immense leverage on your posts and hinges.
Wind load leverage is the primary reason wide gates fail prematurely. When you choose a high-density, solid-panel design, you are effectively creating a massive lever that fights your hardware every time a breeze hits it.
Engineers categorize this pressure using drag coefficients. A solid, privacy-style gate has a drag coefficient of 1.2 to 1.3, meaning it catches almost all of the wind force directed at it.
In contrast, a more transparent design with 75% open space has a coefficient of just 0.3 to 0.4. This significantly reduces the force transferred to your gate posts, preventing the “wobble” and mechanical stress that leads to sagging over time.
Avoid the “Solid Gate” mistake. If your frontage is wider than 20 feet, installing a solid privacy gate without professional structural engineering for wind-load-specific posts will almost certainly lead to binding and hinge failure within a few seasons.
For very wide spans, higher transparency is a structural necessity rather than just an aesthetic choice. If you absolutely require total privacy, ensure your contractor accounts for these high drag forces by sizing your gate posts at least one tier higher than standard requirements.
⭐ Infill Density Across Wide Spans
Black Engineered Wood Poster Display Frame
Set of Three Black Picture Frames
Two Pack Black Wall Gallery Frames
⚖️ Quick Decision Guide: Balancing Style and Wind Load
- Choose solid infill if: Your driveway is protected from high winds and you prioritize total visual privacy over mechanical simplicity.
- Skip solid infill if: You live in an exposed area with frequent gusts, as the wind-load pressure will inevitably cause sagging.
- Pair it with: A high-transparency design if you want to use lighter-gauge posts while maintaining a sleek, modern, and worry-free aesthetic.

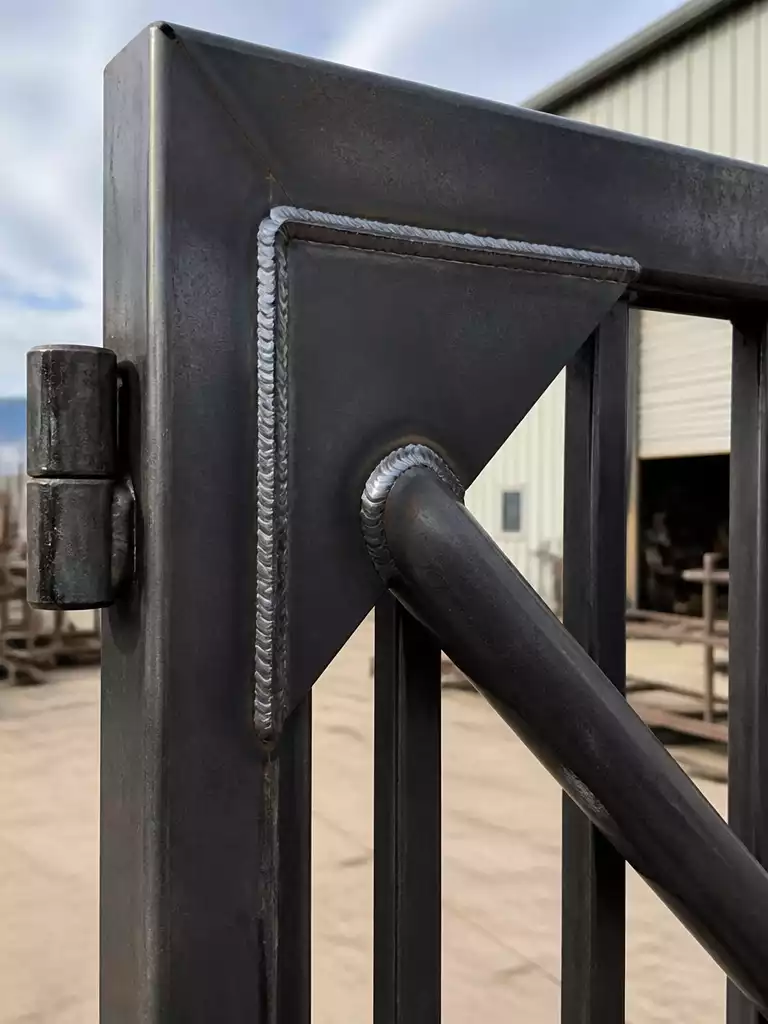

Sag Prevention And Bracing
Structural bracing is the hidden engineering that keeps your wide-span gate square for decades.
When you span a wide driveway with iron, gravity is your constant opponent. A gate leaf is fundamentally a triangle, not a rectangle, and it requires geometric reinforcement to resist the downward pull that leads to sagging and binding.
The most reliable way to maintain this rigidity is through diagonal bracing that runs from the bottom hinge side toward the top latch corner. This configuration transfers the weight of the gate back toward the post rather than letting it hang off the latch.
The 8-foot Rule: Any gate leaf wider than 8 feet requires a secondary stiffener or specialized bracing to counteract the leverage forces. Without this, even the strongest steel frame will eventually droop and ruin your hardware alignment.
Beyond the diagonal brace, ensure your fabricator uses continuous welds and corner gussets to lock the frame into a rigid, non-deforming unit. These gussets act as a structural anchor that prevents the frame from racking over time.
Warning: No amount of internal bracing can fix a weak or moving post. If your foundation isn’t set into stable ground, the entire gate system will shift and sag regardless of how well the frame is reinforced.
Check the following structural elements during your installation:
- Ensure the brace angle sits between 30 and 60 degrees for optimal load distribution.
- Verify that the frame is constructed from square or rectangular steel tubing rather than lighter alternatives.
- Confirm that corner gussets are welded on both sides of the junction for maximum shear strength.
⭐ Sag Prevention and Bracing
Front Opening Kids Art Display Frames
Wide Black Engineered Wood Poster Frame
Custom Fit Dashboard Cover Mat Protector
⚖️ Quick Decision Guide: Stiffening Your Span
- Choose steel tubing: Always use square or rectangular profiles with continuous welds; avoid thin-walled or open-channel materials.
- Skip decorative shortcuts: Avoid relying on scrollwork for stability; decorative elements add weight but provide zero structural resistance.
- Pair with gussets: Weld triangular corner gussets to every frame junction to prevent the gate from racking under its own weight.

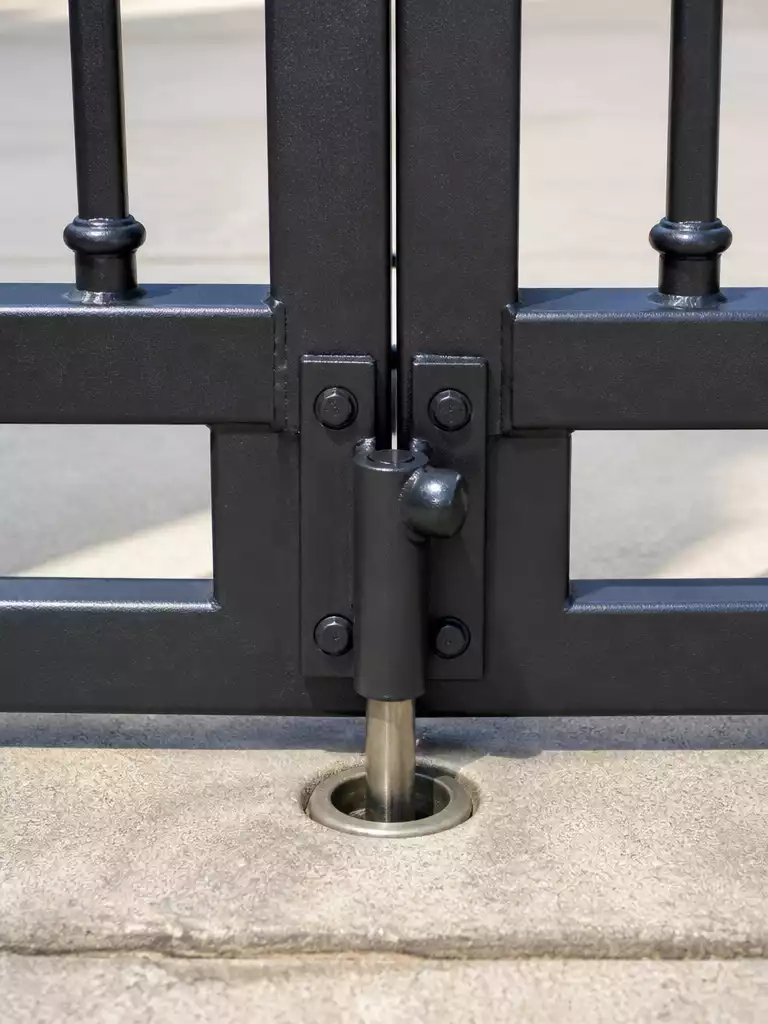

Drop Bolts And Centre Locking
Reliable hardware ensures your double gate stays locked and square against the wind.
Security in a double gate system relies on one leaf effectively trapping the other. Without this physical connection, your gates are essentially two independent swinging doors, which are prone to rattling and unauthorized entry.
The primary leaf should carry the center lock, which engages with the second leaf’s drop bolt. This creates a unified, reinforced barrier across your wide frontage.
The 6mm Rule: For modern magnetic or mechanical locks to function without binding, you must maintain a consistent 6mm gap between the two gate leaves. If the gap is too tight, the natural expansion of the iron or minor post movement will cause the gate to bind, preventing the lock from engaging correctly.
When installing your drop bolt, ensure the ground-sleeve receiver is perfectly plumb. A crooked sleeve will force you to lift or shim the gate leaf, which is a major source of daily frustration.
Always verify the ground throw capacity of your chosen hardware. A 100mm ground throw is standard for most residential driveway applications, providing enough engagement to keep the gate stable even if the ground settles slightly over time.
.
💡 Why This Works:
By using the second leaf as a structural anchor, you eliminate the “rattle” typical of wide-span gates. This dual-locking method transforms two independent leaves into a single, rigid wall that resists wind pressure and physical force, significantly increasing the long-term longevity of your gate frame and hinges.
Structural Benefit: A unified gate system distributes wind stress evenly, preventing the localized hinge fatigue that eventually causes sagging.

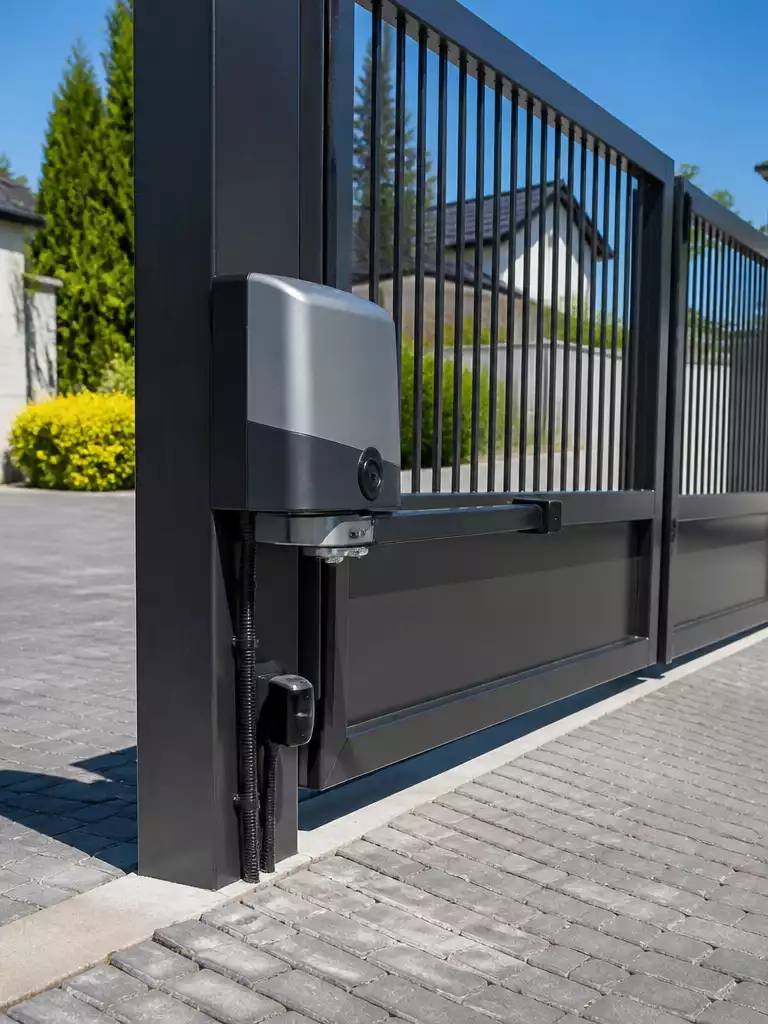

Automation For Two Leaves
Reliable, synchronized motion that keeps your wide entrance secure and effortless to operate.
Resist the urge to treat your automation system as an afterthought or a place to shave costs. When dealing with wide-span double leaves, the motor is the heartbeat of the entire security installation.
You need to calculate for a 30–50% power margin above the actual weight of your gates. This buffer is what allows the system to handle wind resistance and mechanical friction without burning out the motor components.
Key Insight: The Synchronization Factor
For double leaves, ensure your control logic is designed for synchronized movement. This ensures both sides start and stop in perfect unison, preventing the binding that happens when one leaf finishes its travel before the other.
Safety is not optional when you are moving such significant weight. Your installation must include these non-negotiable features to protect people, vehicles, and the gate itself:
- Photocells: Infrared sensors that stop and reverse the gate movement if a person or object crosses the beam.
- Loop Detectors: Buried sensors that keep the gate open as long as a vehicle is detected in the threshold.
- Auto-Reverse Logic: An integrated safety circuit that triggers if the motor senses unexpected resistance during the swing arc.
Common Mistake: The “Just Enough” Trap
Never select a motor based on the exact weight capacity of your gate. A system pushed to its limit will fail prematurely, especially when fighting against wind loads or a slight misalignment in the post footing.
⭐ Automation for Two Leaves
Black Carpet Dashboard Cover Pad Mat
Four Pack Kids Artwork Flip Frames
Custom Fit Dashboard Cover Cap Protector
🧰 Questions for Your Installer
- Operational margin: Can you confirm the motor provides at least a 30–50% power buffer above my gate’s weight?
- Safety integration: Will the quote include both photocells and loop detectors to ensure the system meets modern safety standards?
- Warranty terms: Does your installation warranty cover the synchronized control logic specifically, or only the mechanical motor components?

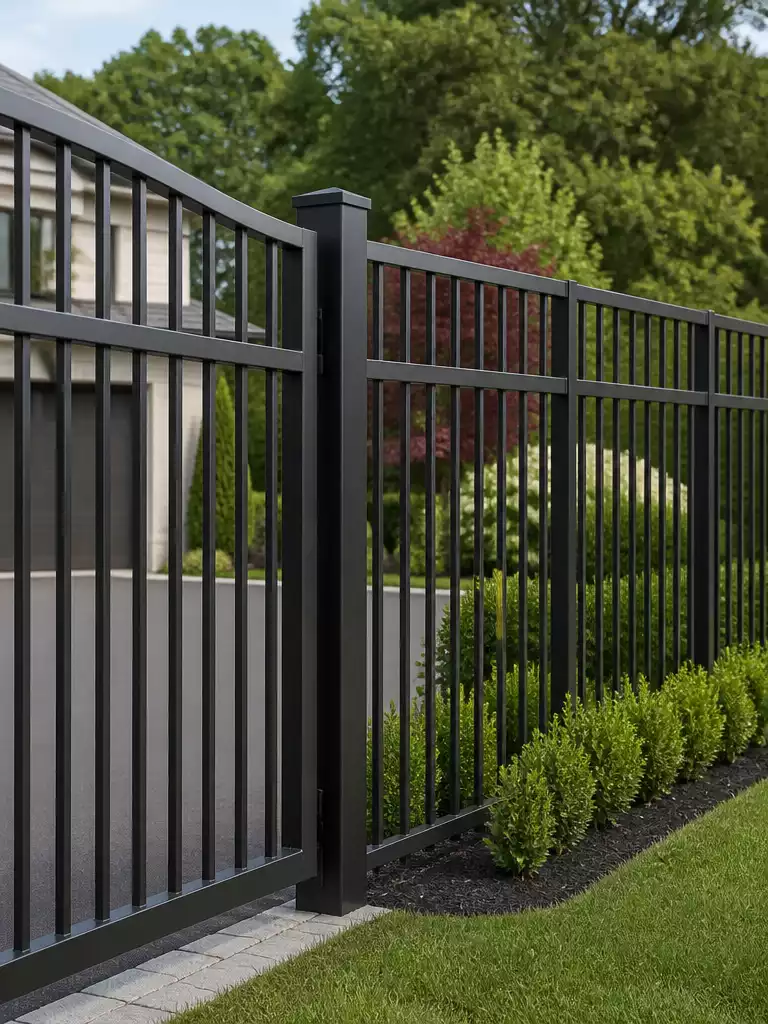

Matching Fencing Either Side
Create a cohesive street-facing aesthetic by aligning your gate design with the surrounding fence line.
The transition from a heavy-duty entrance gate to the adjacent perimeter fencing is where many property owners inadvertently highlight a lack of professional planning. A disjointed look often occurs when homeowners focus solely on the gate’s decorative elements while ignoring the structural continuity of the surrounding enclosure.
To avoid this, treat the gate and the fence as a single, unified system rather than two separate projects. Visual continuity is best achieved by mirroring the top rail profile and the spacing of vertical pickets across the entire frontage.
Professional Alignment Tip: Always prioritize the alignment of the gate’s top rail with the fence’s top rail. Even a slight height discrepancy creates a jarring focal point that draws the eye directly to the lack of symmetry.
Beyond the visual aspect, the connection point between the gate post and the fence panel requires careful engineering. A common mistake is attempting to anchor fence panels directly into the primary gate post without accounting for the different load requirements.
The gate post is a load-bearing column designed to manage the weight and movement of the leaves, while the fence post only needs to support static wind loads. Use matching post caps and hardware finishes to mask these structural differences and ensure the entire system looks like a cohesive, intentional build.
When selecting your fence panels, ensure the tube size and wall thickness complement the gate frame. If your gate uses 2-inch square tubing for its primary frame, matching that profile—or choosing a complementary scale—prevents the gate from looking like an oversized addition to a lightweight fence.
Frontage Continuity Checklist:
- Match the gate’s top rail height and profile to the adjacent fence sections.
- Ensure picket spacing and finial styles are consistent across the entire span.
- Use the same powder coat finish and color code for all metal components.
- Verify that hardware finishes, such as hinges and latches, match throughout the system.
- Check that post caps are identical to provide a polished, unified look from the street.
⭐ Matching Fencing Either Side
Charcoal Gray Dashboard Cover Carpet Pad
Rubber Scroll Design Half Moon Mat
Small Animal Portable Metal Wire Fence
💡 The Visual Benefit of Continuity:
When your gate and fence share an identical top-rail profile, it tricks the eye into perceiving the entire frontage as one intentional, high-end installation. This eliminates the “add-on” look common in DIY projects and creates a clean, architectural line that significantly boosts your home’s curb appeal and perceived property value.
Proportion and Scale: A seamless transition makes even a massive, heavy-duty iron gate feel like a natural part of the landscape.

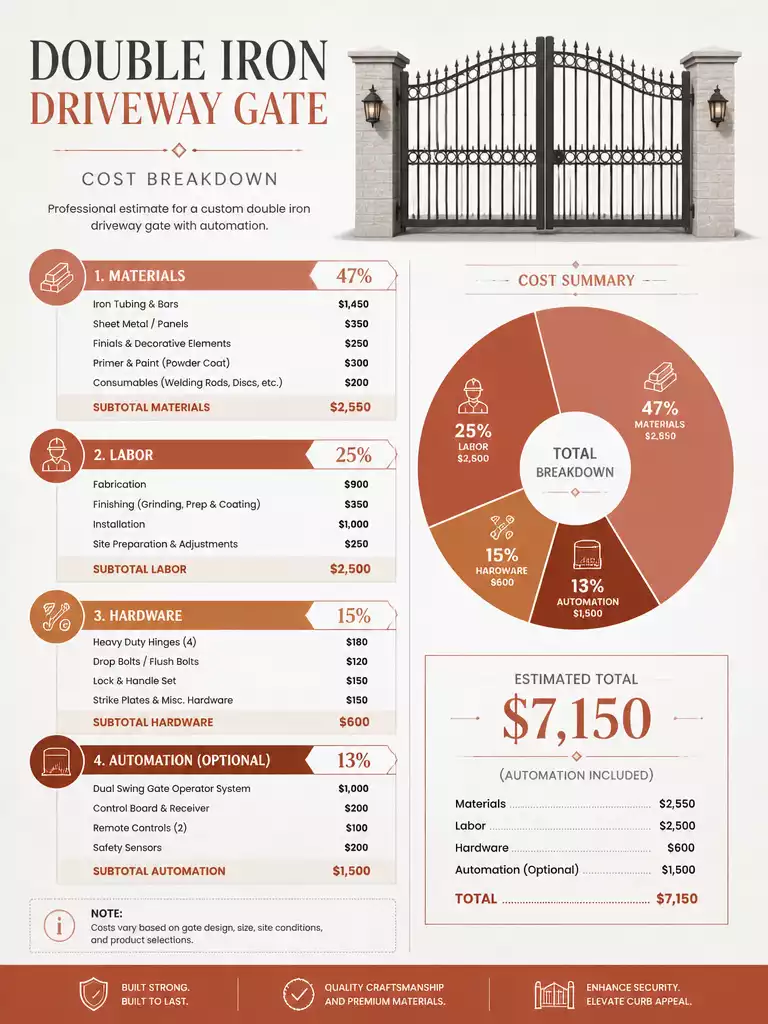

Cost Across A Wide Opening
Understand the true investment of a wide-span gate to avoid unexpected project expenses.
The price of a wide-span gate is rarely just the cost of the iron itself. When you are spanning a significant opening, the structural requirements for footings and the power needed for automation create a wide price spectrum.
The Complexity Multiplier: If your property features a slope or requires oversized, deep-pier concrete footings, you should prepare for the higher end of the $2,800–$8,500 total installed range.
Site-specific engineering demands more labor hours and specialized concrete work, which are often the hidden drivers of cost in wide-span installations.
Do not attempt to save money by cutting corners on the automation system. A high-torque motor is essential for managing the weight and wind load of a wide double-leaf gate, and opting for under-powered equipment will only lead to premature mechanical failure.
When you request a quote, make sure the contractor has accounted for the specific soil conditions and the necessary concrete volume for your post footings. An apples-to-apples comparison requires that every quote includes the complete structural package, not just the gate leaves.
⭐ Cost Across a Wide Opening
Washable Reusable Dog Playpen Training Pad
Solar Powered LED Illuminated Address Sign
Cat Scat Mat Digging Deterrent Spikes
🧰 Questions for Your Installer:
- Foundation depth: Will your quoted price cover the 3-foot deep, 3000 PSI concrete piers required for wide-span stability?
- Automation margin: Is the specified motor providing at least 30% more power than the gate’s actual weight to handle wind?
- Warranty coverage: Does your installation agreement include a service period for adjustment if the gate binds after initial settlement?
With all twelve factors analyzed, you now have the technical roadmap to secure a wide frontage effectively. You certainly do not need to implement every detail at once; prioritizing structural fundamentals is what actually secures your ROI.
Focus your initial energy on the post footings and leaf balance, as these define how the system holds up over time. If you evaluate the installation costs with these specific constraints in mind, you will reach a decision that stands the test of time.
